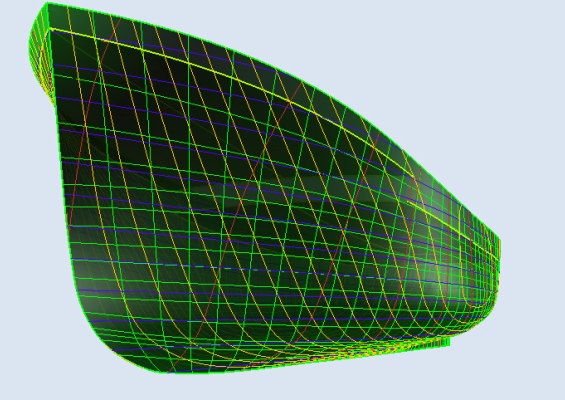

3D Hull Model

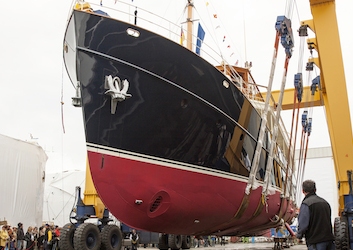

Hull at Launch

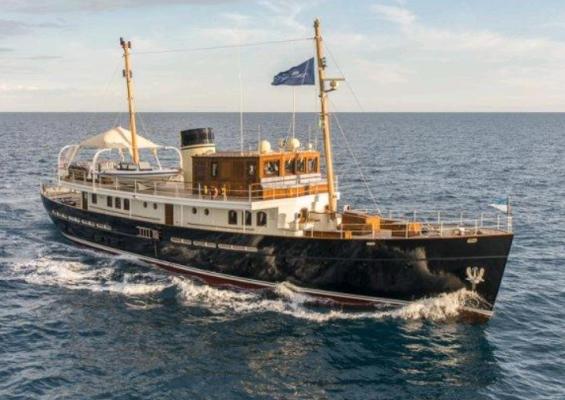

Underway

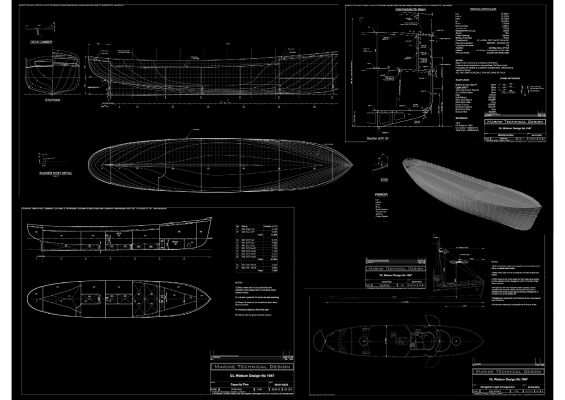

Drawings
Taransay
- MTD's Scope of Work:
- Feasibility Design Study
- Lightship, Deadweights and COG's
- Endurance Prediction and Tankage Requirements
- Loadline and Freeboards
- Resistance and Propulsion Calculations
- Hull 3D model and lines plan
- Watertight Compartmentation
- Intact and Damage Stability
- Tank Arrangement and Capacities
- Midship Section
- Statutory Safety Plans
- Project Participants:
- styling by -
- GL Watson
- interior by -
- Studio Tassin
- yard -
- Rossi Navi
Initial brief from William Collier was to review the 1930's design for compliance against current Flag and Class
requirements. Very early it was clear that the new design was not going to meet all the specifics required by GL Watson, and so instigated a rethink.
Initially it was envisaged the new Taransay would be slightly longer than the original, however as requirements evolved, so did the length.
Stability would become a significant factor with the length to beam ratio being adjusted to improve survival when flooded. In the end we generated
a number of different versions from 35m to 37.5m. Subsequently our 37.5m design became the basis for the Rossi Navi team to tweek. The final build length was just over 28m.
- MTD's design:
- LOA - 37.50m
- Beam - 7.62m
- Displacement - 280tonnes
